IATF 16949:2016 CertifiedIATF 16949:2016 Certified

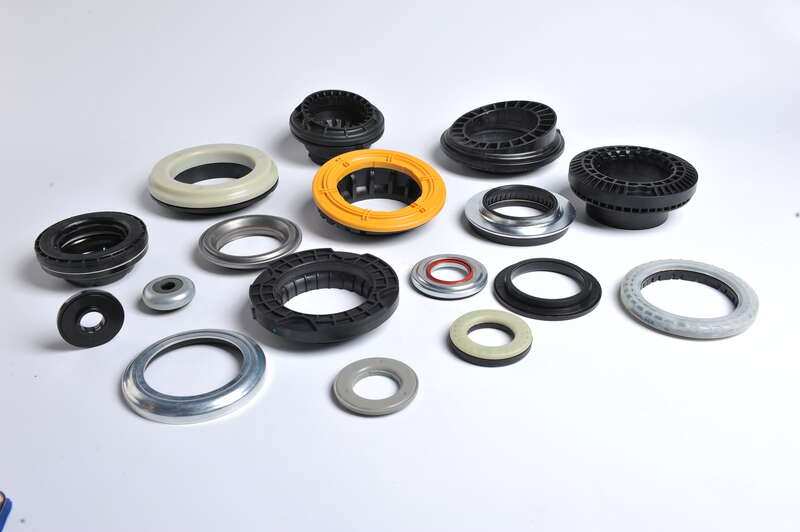

Professional-grade shock absorber bearings made from premium GCr15/SAE52100 bearing steel. These critical components connect the shock absorber to the vehicle body, withstand wheel impact forces and vibrations, ensuring proper strut function and superior vehicle safety, comfort, and handling.
Shock absorber bearings, also known as strut bearings or suspension bearings, are pivotal components in McPherson strut suspension systems. They sit at the top of the shock absorber/strut assembly, providing a rotating pivot point that allows the strut to turn with the steering while simultaneously supporting the vehicle's weight and absorbing road shocks.
When these bearings wear out, you may experience clunking noises when turning, uneven tire wear, reduced steering precision, and compromised ride comfort. Replacing worn shock absorber bearings restores proper suspension function and vehicle safety.
| Parameter | Specification |
|---|---|
| Bearing Material | GCr15 / SAE52100 Bearing Steel |
| Precision Grade | P5 / P6 (ISO 492) |
| Working Temperature | -40°C ~ +120°C |
| Service Life | 100,000km+ |
| Hardness | HRC 58-62 |
| Axial Load Capacity | 6,000 - 24,000 N |
| Noise Level | < 45 dB |
| Sealing | Double lip seal + dust shield |
| Lubrication | Lithium grease, lifetime sealed |
| Applicable Vehicles | Passenger cars, SUVs, light commercial |
Precision-ground raceways and carefully selected balls ensure whisper-quiet operation during steering and suspension movement.
Four-point contact ball bearing design delivers exceptional axial and radial load capacity for demanding vehicle applications.
Double-lip seals and integrated dust shields prevent contamination from road debris, moisture, and salt, extending service life.
Premium GCr15 steel with optimized heat treatment delivers 100,000km+ service life under normal driving conditions.
Our shock absorber bearings are widely used in McPherson strut suspension systems across various vehicle types:
Sedans, hatchbacks, coupes
Medium to large SUVs
Light trucks, vans, MPVs
Every bearing undergoes a rigorous production process to ensure the highest quality standards:
Precision carburizing & quenching for optimal hardness
CNC grinding of raceways to P5/P6 tolerance
Clean-room assembly with precision ball loading
Noise, torque, and dimensional testing on every unit
Contact our team for pricing, technical specifications, or to discuss your custom requirements. We typically respond within 24 hours.
